Camera
•    Image Sensor: 1/2.9" CMOS
•    Max. Resolution: 2560 (H) × 1440 (V)
•    ROM / RAM: 128 MB / 128 MB
•    Scanning System: Progressive
•    Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
•    Min. Illumination:
     o    0.006 lux @ F1.6 (Color, 30 IRE)
     o    0.0006 lux @ F1.6 (B/W, 30 IRE)
     o    0 lux (Illuminator on)
•    S/N Ratio: > 56 dB
•    Illumination Distance: Up to 30 m (IR LED and warm light)
•    Illuminator On/Off Control: Auto / Manual
•    Illuminator Number: 2 × IR LED, 2 × warm light
•    Angle Adjustment:
     o    Pan: 0°–360°
     o    Tilt: 0°–90°
     o    Rotation: 0°–360°

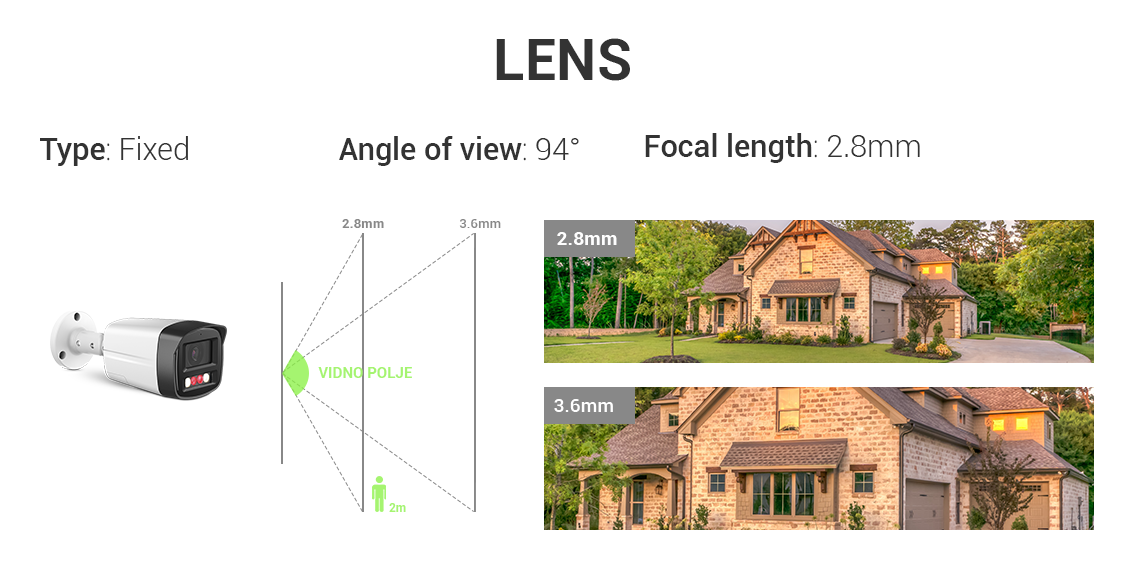

Lens
•    Lens Type: Fixed-focal
•    Lens Mount: M12
•    Focal Length: 2.8 mm
•    Max. Aperture: F1.6
•    Field of View: H: 94°, V: 52°, D: 111°
•    Iris Control: Fixed
•    Close Focus Distance: 1.1 m
•    DORI Distance:
     o    Detect: 64.0 m
     o    Observe: 25.6 m
     o    Recognize: 12.8 m
     o    Identify: 6.4 m

Intelligence
•    Human Detection: Supports classification and accurate detection of humans
•    Smart Search: Works with Smart NVR for refined intelligent search and event extraction

Video
•    Video Compression: H.265, H.264, MJPEG (sub stream only)
•    Smart Codec: Smart H.265+, Smart H.264+
•    Frame Rate:
     o    Main stream: 2560 × 1440 @ 1–25/30 fps
     o    Sub stream: 704 × 576 / 704 × 480 @ 1–25/30 fps
•    Stream Capability: 2 streams
•    Resolution: 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
•    Bit Rate Control: CBR / VBR
•    Video Bit Rate:
     o    H.264: 32–4096 kbps
     o    H.265: 12–4096 kbps
•    Day/Night: Auto(ICR) / Color / B/W
•    BLC / HLC / WDR: Yes / Yes / 120 dB
•    White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
•    Gain Control: Auto / Manual
•    Noise Reduction: 3D NR
•    Motion Detection: ON/OFF (4 areas, rectangular)
•    Region of Interest (RoI): Yes (4 areas)
•    Smart Illumination: Yes
•    Image Rotation / Mirror: 0°/180° / Yes
•    Privacy Masking: 4 areas

Audio
•    Built-in MIC: Yes
•    Audio Compression: G.711a, G.711Mu, PCM, G.726

Alarm
•    Alarm Events: Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, SMD (human), security exception

Network
•    Network Port: RJ-45 (10/100 Base-T)
•    SDK and API: Supported
•    Network Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP, P2P, etc.
•    Interoperability: ONVIF (Profile S, T), CGI
•    Users: 6 (Total bandwidth: 24 Mbps)
•    Storage: FTP
•    Browser Support: IE, Chrome, Firefox
•    Management Software: Smart PSS Lite, DSS, DMSS
•    Mobile Client: iOS, Android

Cybersecurity
•    Configuration encryption, trusted execution, digest, HTTPS, trusted upgrade, X.509 certificate support, video encryption, security logs, account lockout, WSSE

Certification
•    CE-LVD: EN62368-1
•    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power & Environment

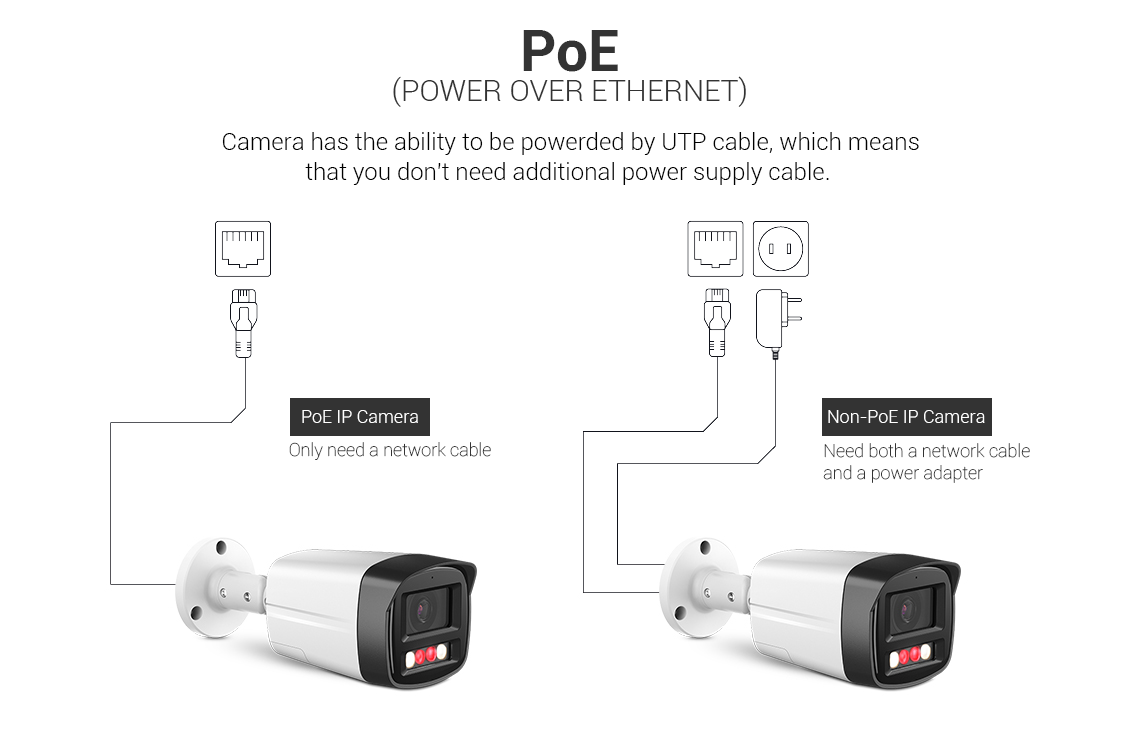

•    Power Supply: 12 VDC / PoE (802.3af)
•    Power Consumption:
     o    Basic: 2 W (12 VDC), 2.9 W (PoE)
     o    Max: 6.4 W (12 VDC), 7.7 W (PoE)
•    Operating Temperature: –40 °C to +60 °C
•    Operating / Storage Humidity: ≤95%
•    Protection Rating: IP67

Structure
•    Casing Material: Metal + plastic

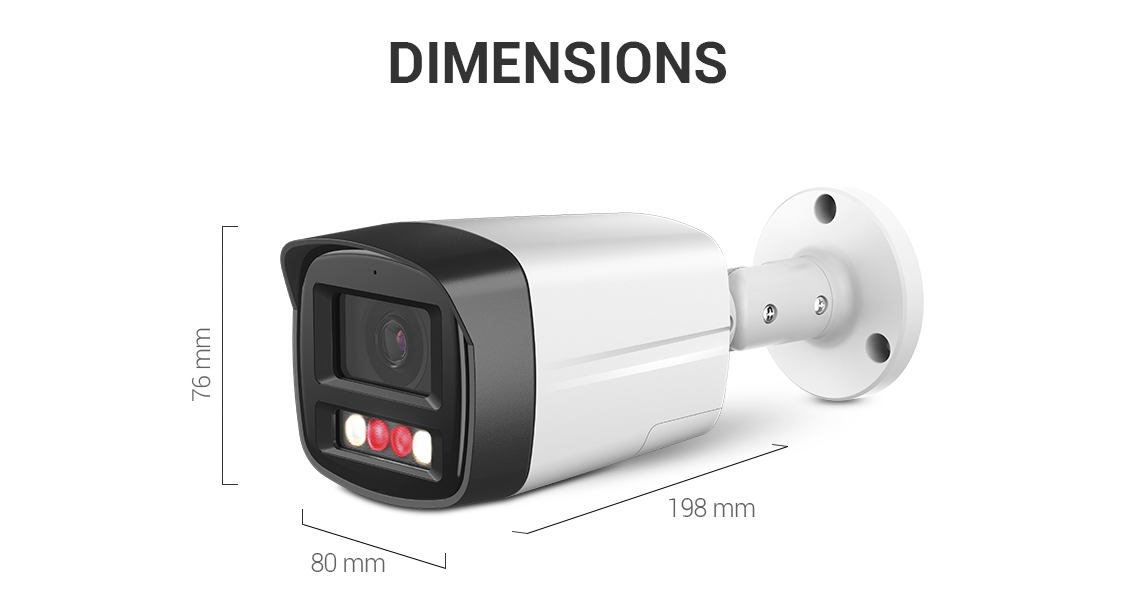

•    Product Dimensions: 197.9 × 80.2 × 76.2 mm
•    Net Weight: 0.31 kg
•    Gross Weight: 0.45 kg
