> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2560 × 1440)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access.
> Built in Mic.
> 12 VDC/PoE power supply,easy for installation.
> IP67 protection.
> Supports human detection.
Image Sensor
- Sensor Type: 1/2.9" CMOS
- Max. Resolution: 2560 (H) × 1440 (V)
- ROM: 128 MB
- RAM: 128 MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto / Manual, 1/3 s to 1/100,000 s
- Minimum Illumination:
- 0.006 lux @ F1.6 (Color, 30 IRE)
- 0.0006 lux @ F1.6 (B/W, 30 IRE)
- 0 lux (with illuminator on)
- S/N Ratio: > 56 dB
Illumination
- Illumination Distance: Up to 30 m (IR LED and warm light)
- Illuminator Control: Auto / Manual
- Number of Illuminators: 1 IR LED, 1 warm light
Angle Adjustment
- Pan: 0°–360°
- Tilt: 0°–78°
- Rotation: 0°–360°

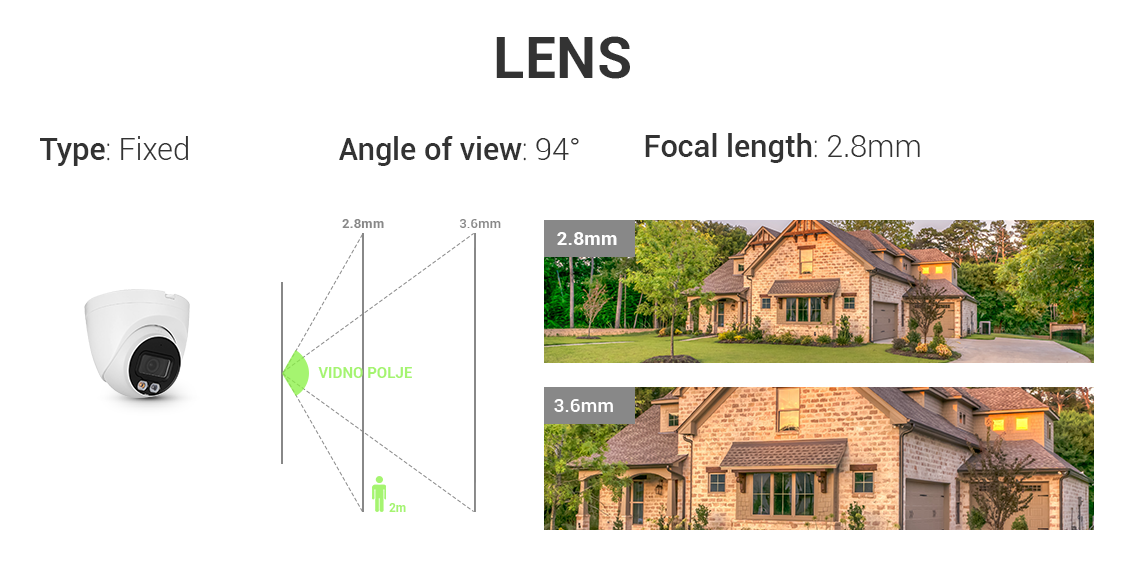

Lens
- Lens Type: Fixed-focal
- Lens Mount: M12
- Focal Length: 2.8 mm
- Max. Aperture: F1.6
- Field of View: Horizontal 94°, Vertical 52°, Diagonal 111°
- Iris Control: Fixed
- Close Focus Distance: 1.1 m
- DORI Distance (2.8 mm lens):
- Detect: 64.0 m
- Observe: 25.6 m
- Recognize: 12.8 m
- Identify: 6.4 m
Intelligence
- Human Detection: Supports classification and accurate detection of humans
- Smart Search: Works with Smart NVR for advanced intelligent search, event extraction, and video merging
Video
- Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
- Smart Codec: Smart H.265+; Smart H.264+
- Video Frame Rate:
- Main stream: 2560 × 1440 (1–25/30 fps)
- Sub stream: 704 × 576 (1–25 fps) / 704 × 480 (1–30 fps)
Maximum frame rates per stream; actual rates depend on total encoding capacity
- Stream Capability: 2 streams
- Supported Resolutions:
4M (2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1, VGA, CIF
- Bit Rate Control: CBR / VBR
- Video Bit Rate:
- H.264: 32 kbps – 4096 kbps
- H.265: 12 kbps – 4096 kbps
- Day/Night: Auto (ICR) / Color / B/W
- BLC: Yes
- HLC: Yes
- WDR: 120 dB
- White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
- Gain Control: Auto / Manual
- Noise Reduction: 3D NR
- Motion Detection: ON / OFF (4 configurable rectangular areas)
- Region of Interest (RoI): 4 areas
- Smart Illumination: Yes
- Image Rotation: 0° / 180°
- Mirror: Yes
- Privacy Masking: 4 areas
Audio
- Built-in Microphone: Yes
- Audio Compression: G.711a, G.711Mu, PCM, G.726
Alarm
- Alarm Events: Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, SMD (human), security exception
Network
- Network Port: RJ-45 (10/100 Base-T)
- SDK & API: Supported
- Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
- Interoperability: ONVIF (Profile S, Profile T), CGI
- Users / Hosts: 6 users (total bandwidth: 24 Mbps)
- Storage: FTP
- Supported Browsers: IE, Chrome, Firefox
- Management Software: Smart PSS Lite, DSS, DMSS
- Mobile Client: iOS, Android
- Cybersecurity Features: Configuration encryption, trusted execution, Digest, security logs, HTTPS, trusted upgrade, WSSE, trusted boot, account lockout, generation/import of X.509 certificates, video encryption
Certification
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power

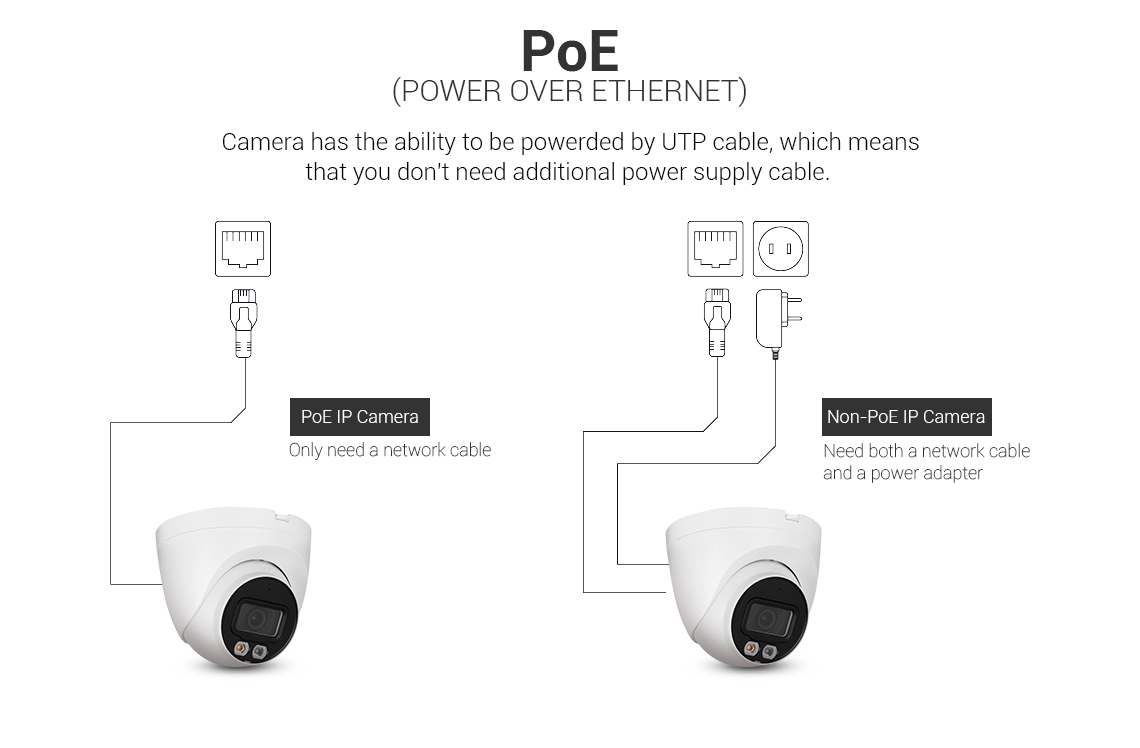

- Power Supply: 12 VDC / PoE (802.3af)
- Power Consumption:
- Basic: 2 W (12 VDC); 2.9 W (PoE)
- Max (H.265 + intelligence + WDR + max illuminator): 4.6 W (12 VDC); 5.7 W (PoE)
Environment
- Operating Temperature: –40 °C to +60 °C
- Operating Humidity: ≤95%
- Storage Temperature: –40 °C to +60 °C
- Storage Humidity: ≤95%
- Protection Rating: IP67
Structure
- Casing Material:
- Inner Core: Metal + plastic
- Cover: Plastic

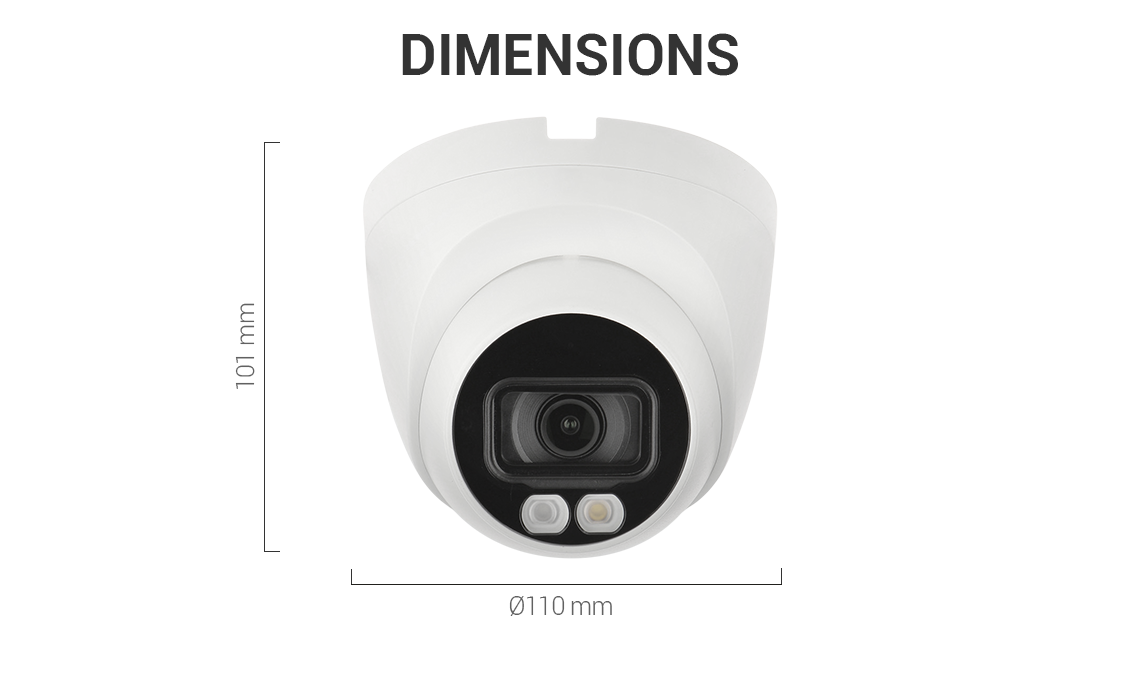

- Product Dimensions: 100.9 mm × Φ109.9 mm

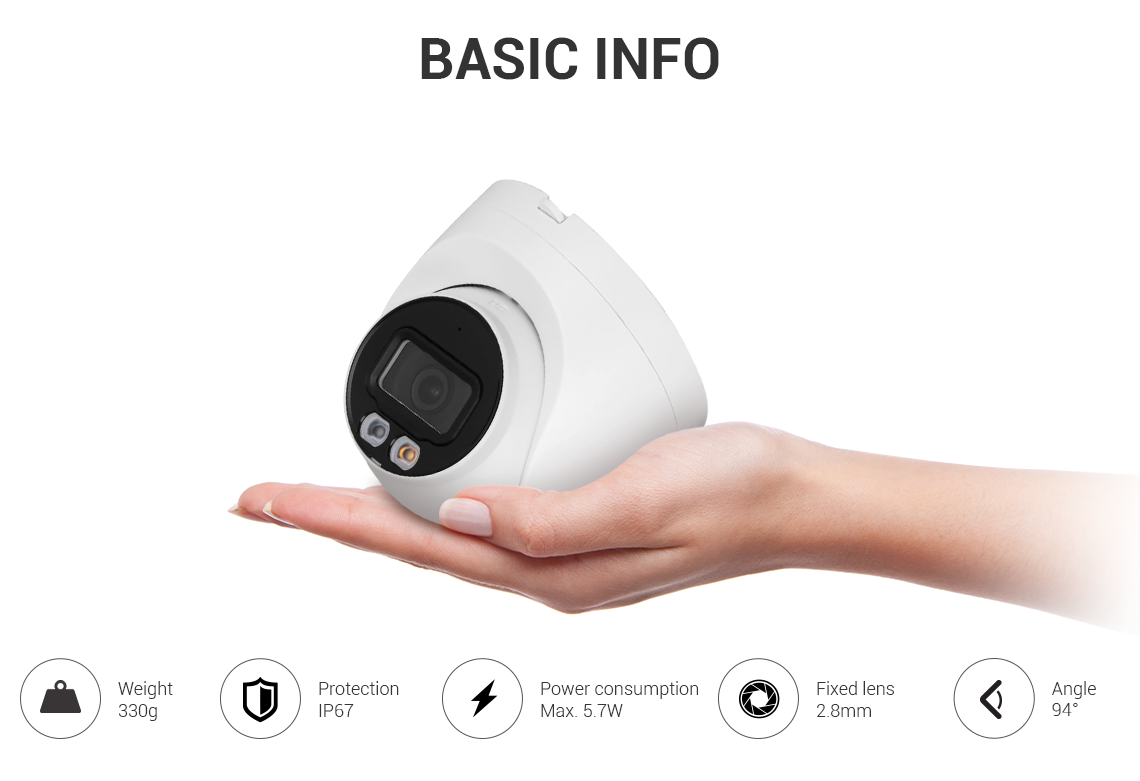

- Net Weight: 0.33 kg
- Gross Weight: 0.45 kg
