Camera
- Image Sensor: 1/2.7" CMOS
- Max. Resolution: 3200 (H) × 1800 (V)
- ROM: 128 MB
- RAM: 256 MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination:
- 0.007 lux@F1.6 (Color, 30 IRE)
- 0.0007 lux@F1.6 (B/W, 30 IRE)
- 0 lux (Illuminator on)
- S/N Ratio: ＞56 dB
- Illumination Distance: Up to 30 m (IR) / Up to 30 m (Warm light)
- Illuminator On/Off Control: Auto; Manual
- Illuminator Number: 1 (Multi-core IR + warm light)
- Angle Adjustment:
- Pan: 0°–360°
- Tilt: 0°–78°
- Rotation: 0°–360°
Lens
- Lens Type: Fixed-focal
- Lens Mount: M12
- Focal Length: 2.8 mm
- Max. Aperture: F1.6
- Field of View (2.8 mm):
- Horizontal: 110°
- Vertical: 58°
- Diagonal: 132°
- Iris Control: Fixed
- Close Focus Distance (2.8 mm): 1.1 m

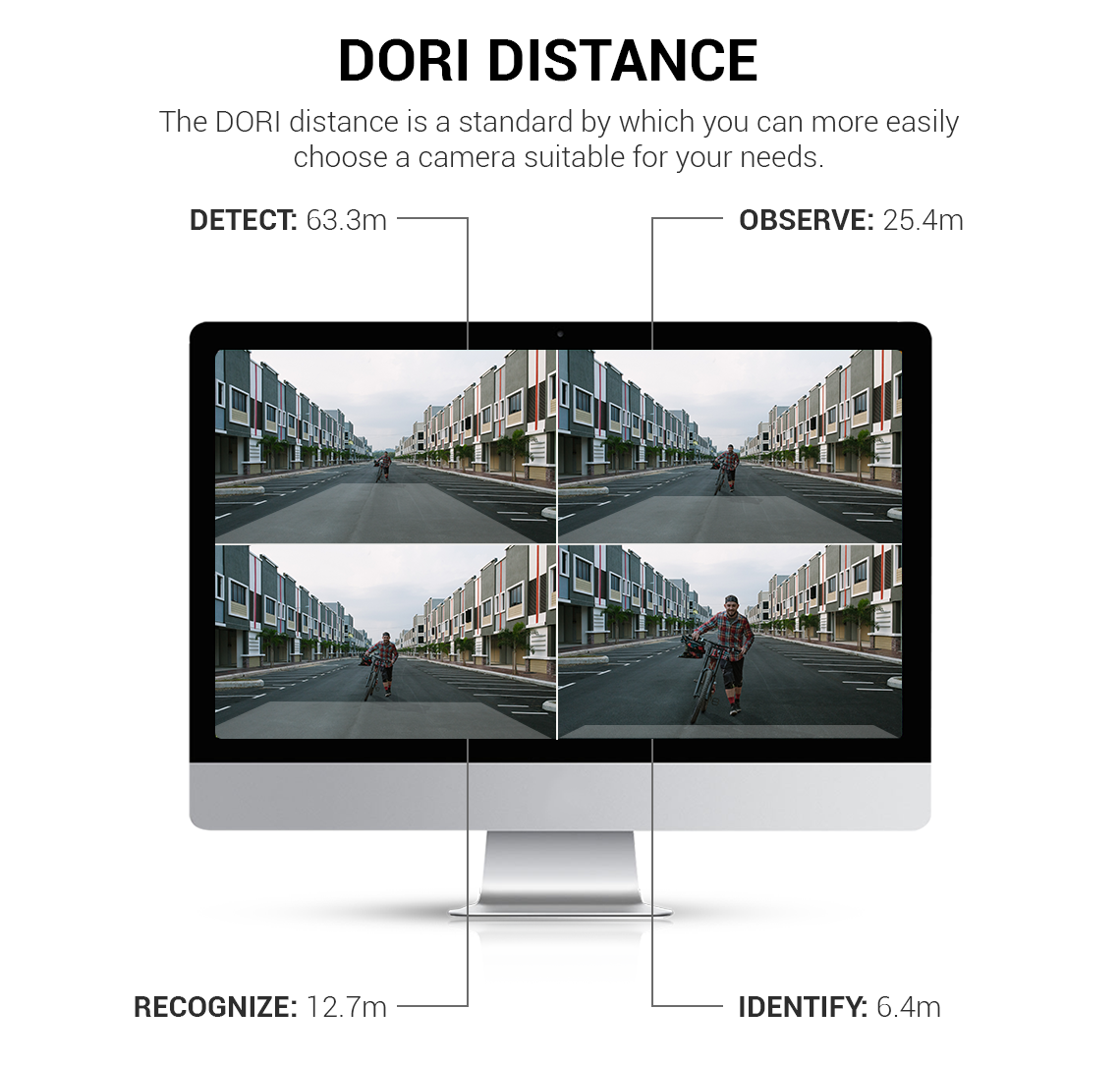

DORI Distance (2.8 mm lens)
- Detect: 63.6 m
- Observe: 25.4 m
- Recognize: 12.7 m
- Identify: 6.4 m
* DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area.
Intelligence
- Human Detection: Supports classification and accurate detection of human targets
- Smart Search: Works with Smart NVR to perform refined intelligent search, event extraction, and event video merging
Video
- Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
- Smart Codec: Smart H.265+; Smart H.264+
- Video Frame Rate:
- Main stream: 3200 × 1800 (1–20 fps) / 2688 × 1520 (1–25/30 fps)
- Sub stream: 704 × 576 (1–25 fps) / 704 × 480 (1–30 fps)
- Stream Capability: 2 streams

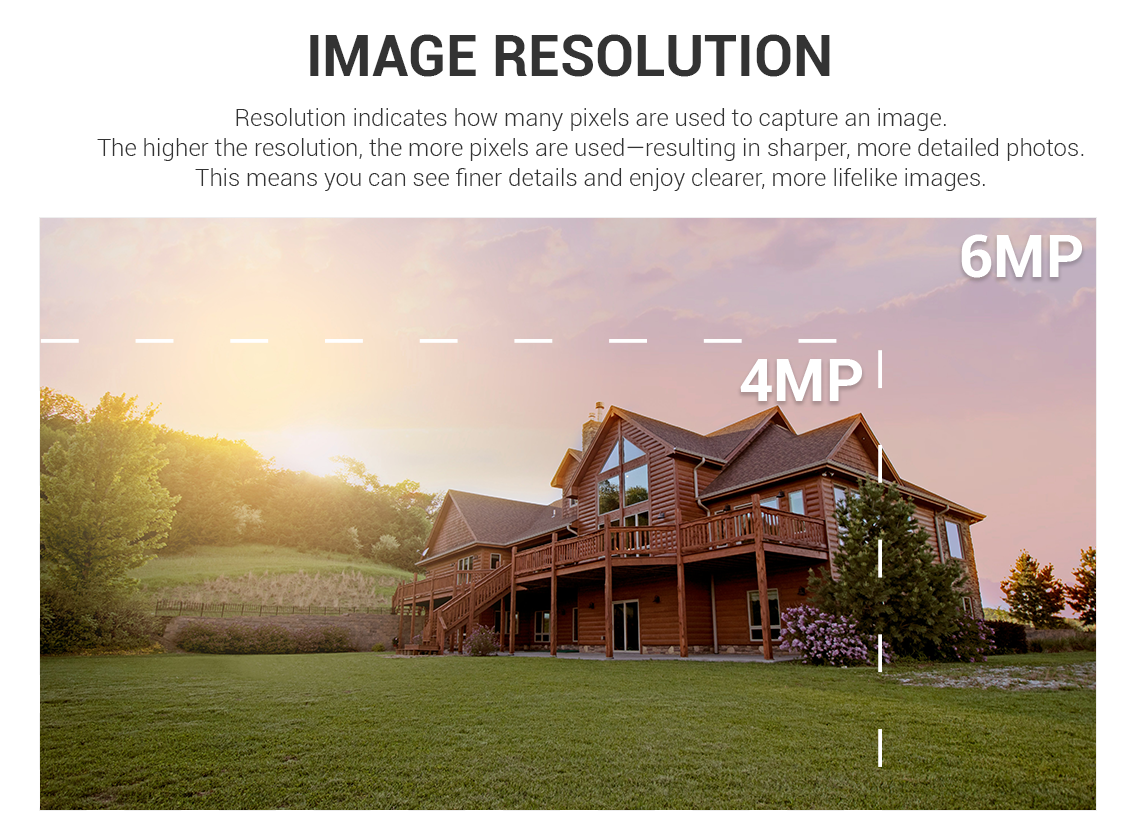

- Resolution:
6M (3200 × 1800); 4M (2880 × 1620 / 2688 × 1520); 3M (2048 × 1536 / 2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240)
- Bit Rate Control: VBR; CBR
- Video Bit Rate:
- H.264: 32 kbps–8192 kbps
- H.265: 12 kbps–8192 kbps
- Day/Night: Auto(ICR) / Color / B/W
- BLC: Yes
- HLC: Yes
- WDR: DWDR
- White Balance: Auto; Natural; Street lamp; Outdoor; Manual; Regional custom
- Gain Control: Auto/Manual
- Noise Reduction: 3D NR
- Motion Detection: ON/OFF (4 areas, rectangular)
- Region of Interest (RoI): Yes (4 areas)
- Smart Illumination: Yes
- Smart Dual Light: Yes
- Image Rotation: 0°/90°/180°/270°
- Mirror: Yes
- Privacy Masking: 4 areas
Audio
- Built-in MIC: Yes
- Audio Compression: G.711a; G.711Mu; PCM; G.726
Alarm
- Alarm Event:
- Network disconnection
- IP conflict
- Illegal access
- Motion detection
- Video tampering
- Audio detection
- SMD (human)
- Security exception
Network
- Network Port: RJ-45 (10/100 Base-T)
- SDK and API: Yes
- Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
- Interoperability: ONVIF (Profile S & Profile T); CGI
- User/Host: 20 (Total bandwidth: 48 M)
- Storage: FTP
- Browser: IE; Chrome; Firefox
- Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care
- Mobile Client: iOS; Android
Cyber Security
- Video encryption
- Configuration encryption
- Digest
- WSSE
- Account lockout
- Security logs
- Generation and importing of X.509 certificate
- HTTPS
- Trusted boot
- Trusted execution
- Trusted upgrade
Certification
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
- Power Supply: 12 VDC / PoE (802.3af)
- Power Consumption:
- Basic: 2 W (12 VDC), 2.9 W (PoE)
- Max.: 4 W (12 VDC); 5.3 W (PoE) (H.265 + intelligence on + DWDR + illuminator intensity)
Environment
- Operating Temperature: –40 °C to +60 °C
- Operating Humidity: ≤95% RH, non-condensing
- Storage Temperature: –40 °C to +60 °C
- Storage Humidity: ≤95% RH, non-condensing
- Protection: IP67

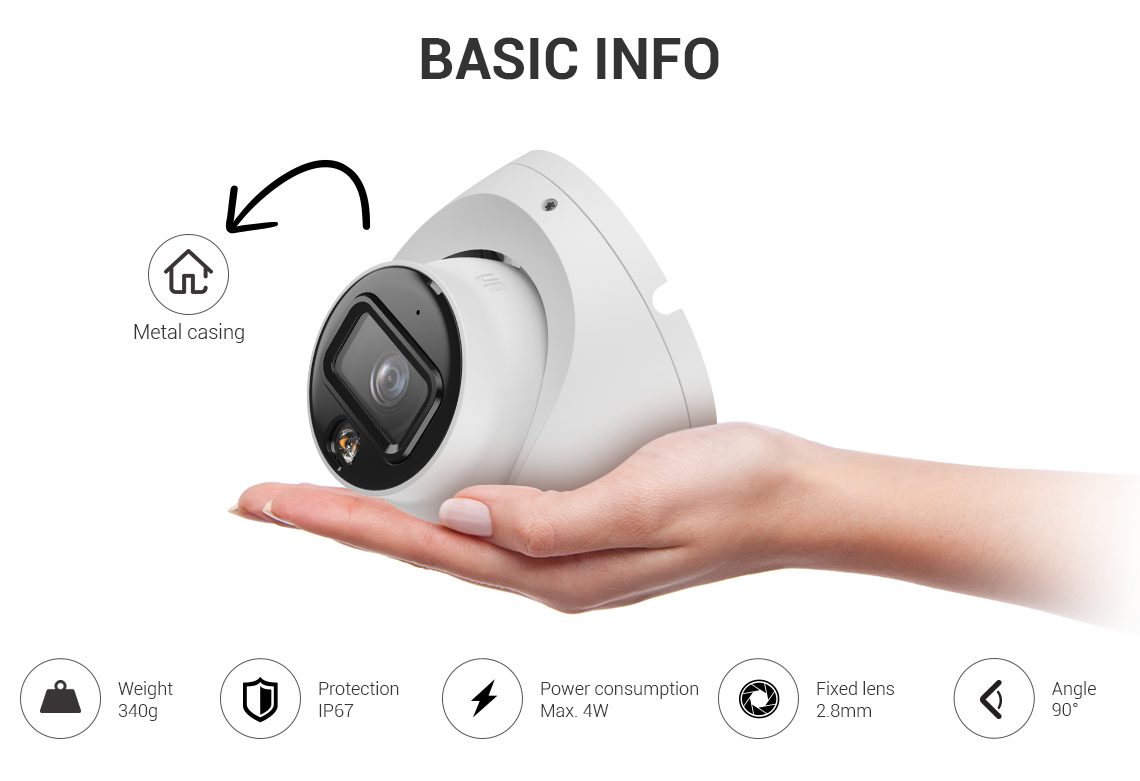

Structure
- Casing Material: Metal
- Product Dimensions: 85.6 mm × Φ94.0 mm
- Net Weight: 0.34 kg
- Gross Weight: 0.45 kg
