Camera
Image Sensor: 1/2.7" CMOS
Max. Resolution: 3840 (H) × 2160 (V)
ROM: 128 MB
RAM: 256 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.008 lux@F1.5 (Color, 30 IRE), 0.0008 lux@F1.5 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio: ＞56 dB
Illumination Distance: Up to 40 m (IR), Up to 40 m (Warm light)
Illuminator: On/Off Control Auto;Manual
Illuminator Number: 2 (Multi-core (IR + warm) light)
Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°

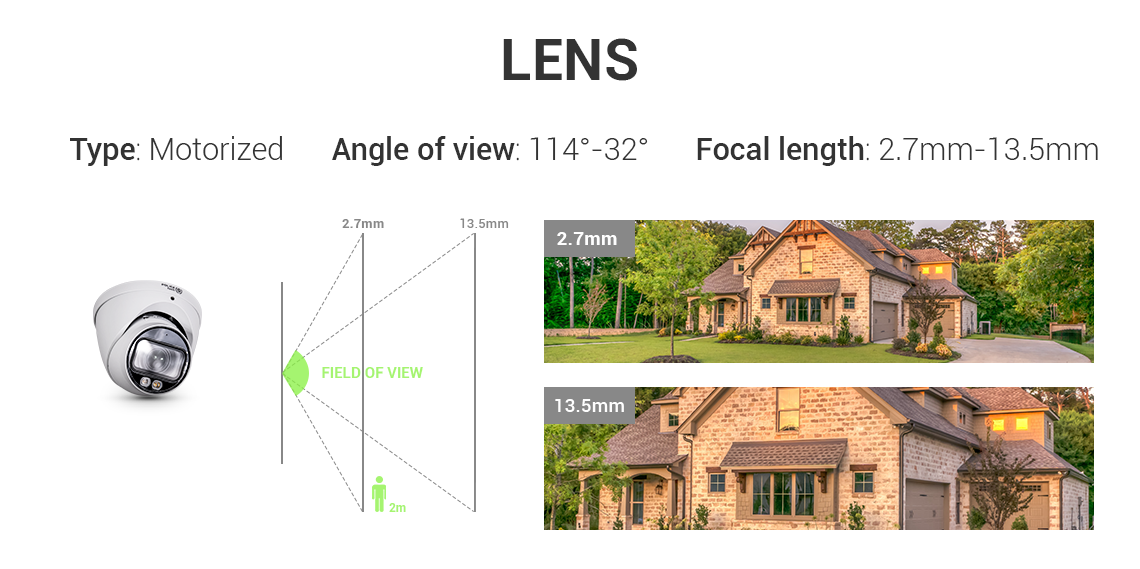

Lens
Lens Type: Motorized vari-focal
Lens Mount: φ14
Focal Length: 2.7 mm–13.5 mm
Max. Aperture: F1.5
Field of View: H: 114°–32°; V: 58°–17°; D: 138°–36°
Iris Control: Fixed
Close Focus Distance: 0.8m

Intelligence

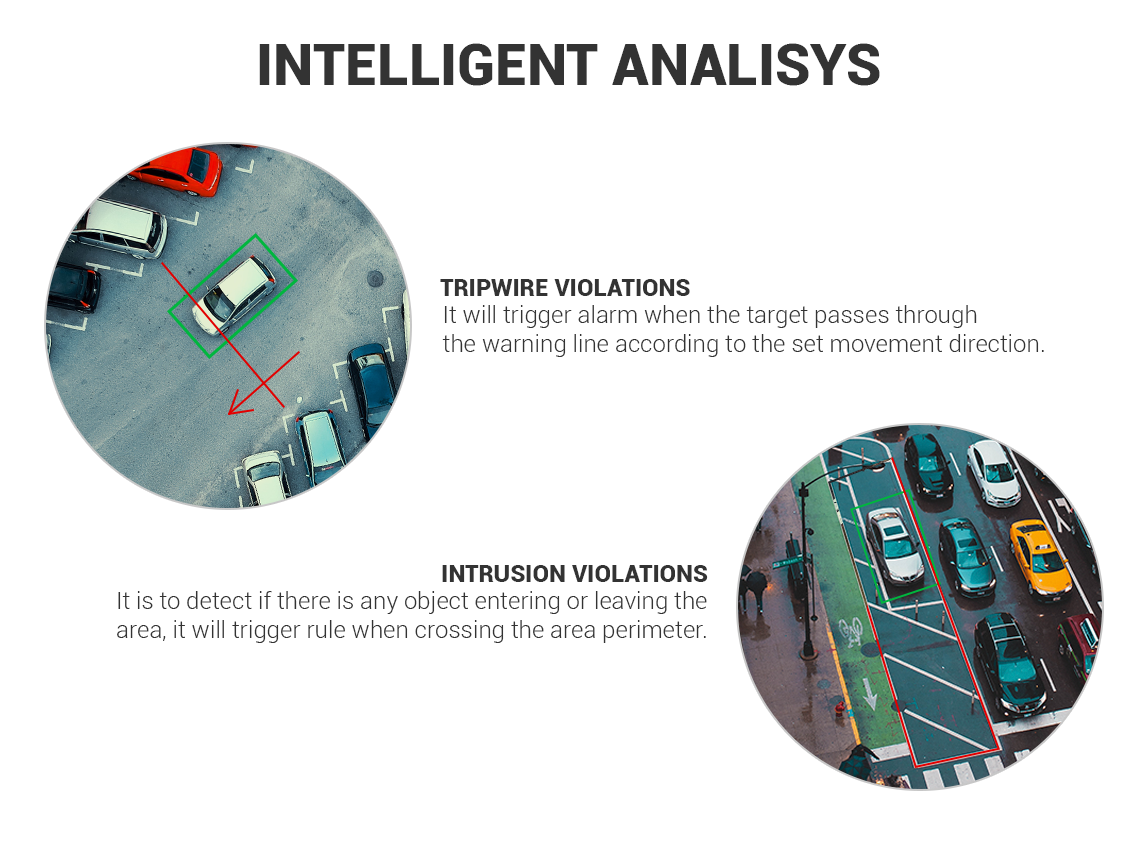

IVS (Perimeter Protection): Intrusion, tripwire (the two functions support theclassification and accurate detection of vehicle andhuman)
SMD: SMD Plus
Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

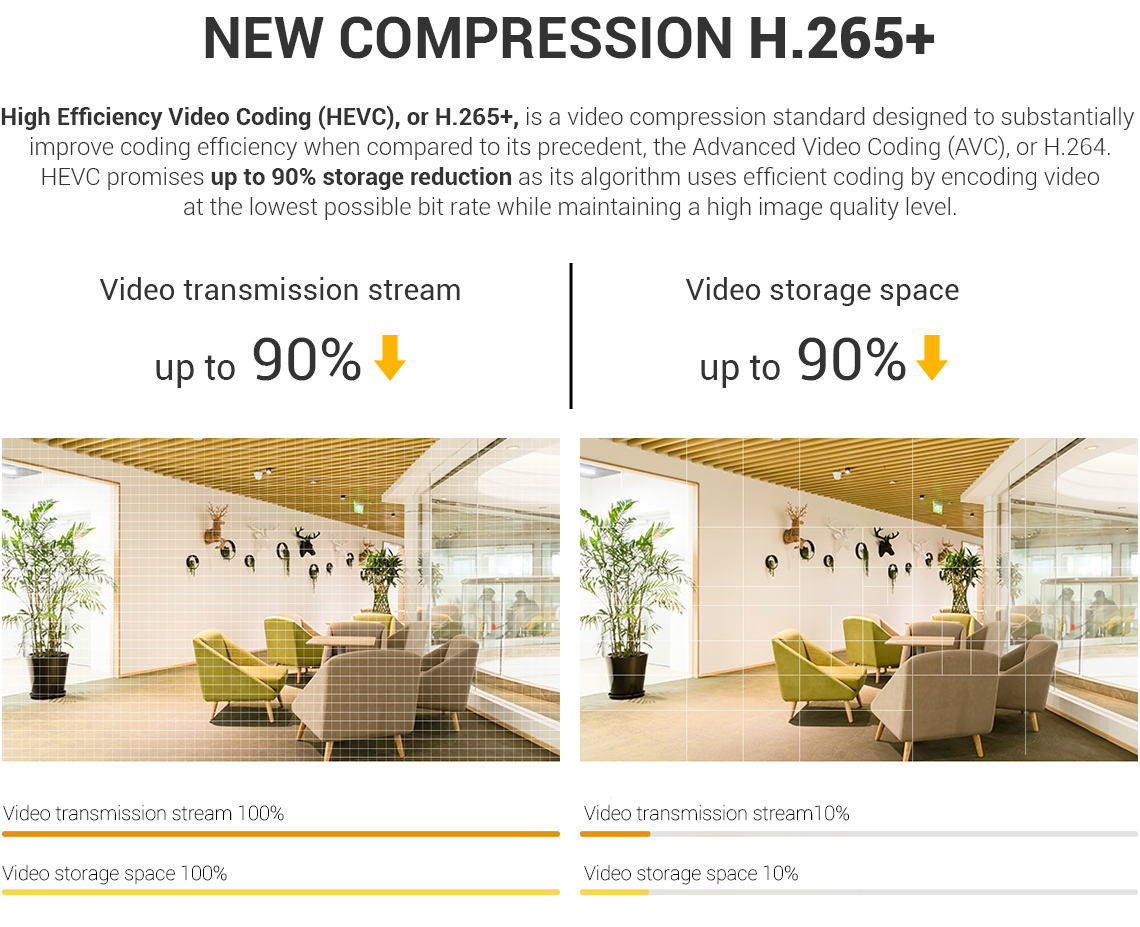

Smart Codec: Smart H.265+; Smart H.264+
Video Frame Rate: Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps); sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams
Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×1728); 4M (2880 × 1620/2688 × 1520); 3M (2048 ×1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control: VBR;CBR
Video Bit Rate: H.264: 32 kbps–8192 kbps; mH.265: 12 kbps–8192 kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control: Auto/Manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Smart Illumination: Yes

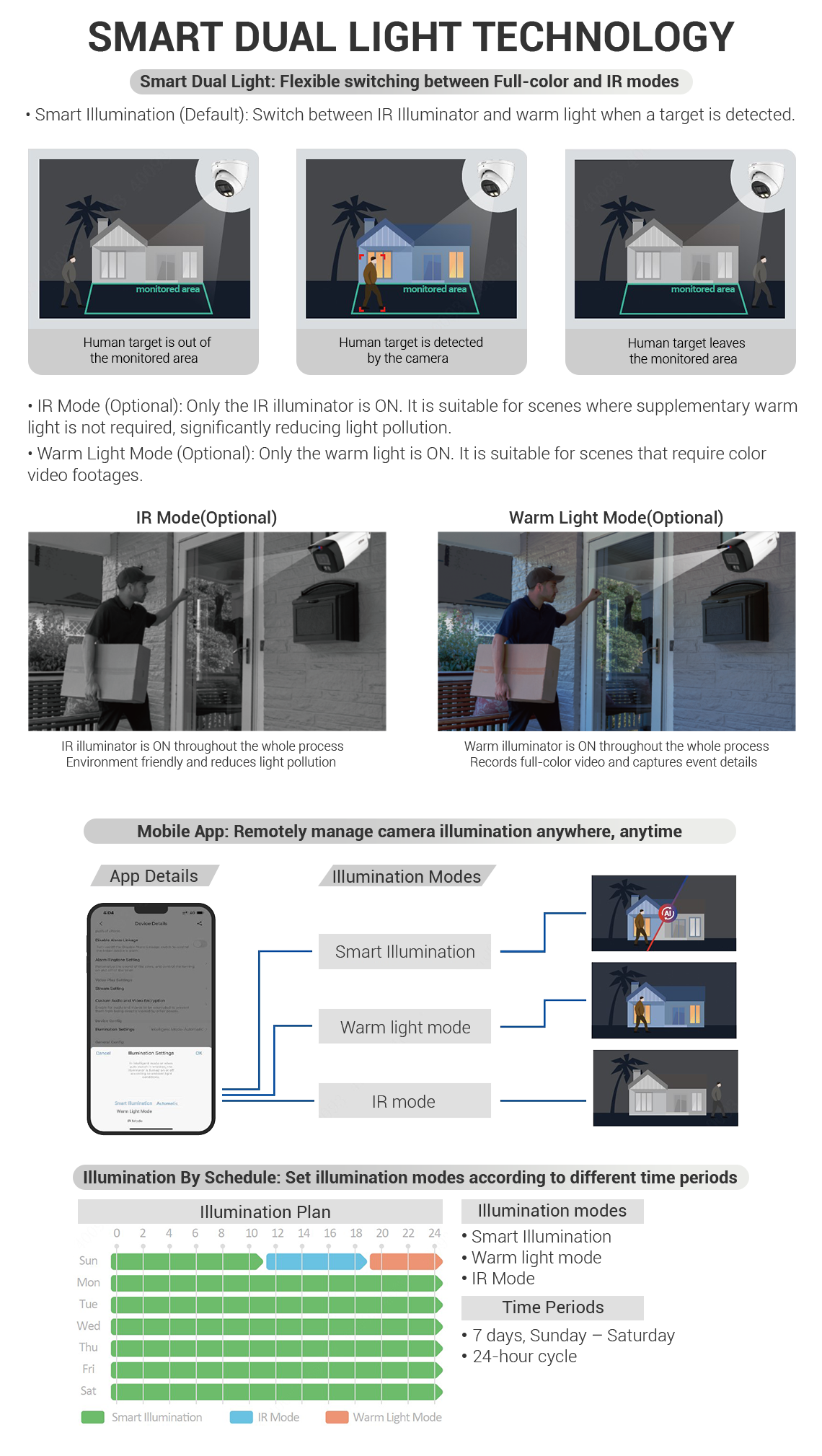

Smart Dual Light: Yes
Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520resolution and lower)
Mirror: Yes
Privacy Masking: 4 areas

Audio
Built-in MIC: Yes, built-in Mic
Audio Compression: G.711a; G.711Mu; G.726; PCM

Alarm
Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception

Network
Network Port: RJ-45 (10/100 Base-T)
Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P
Interoperability: ONVIF (Profile S & Profile T & Profile G); CGI
User/Host: 20 (Total bandwidth: 48 M)

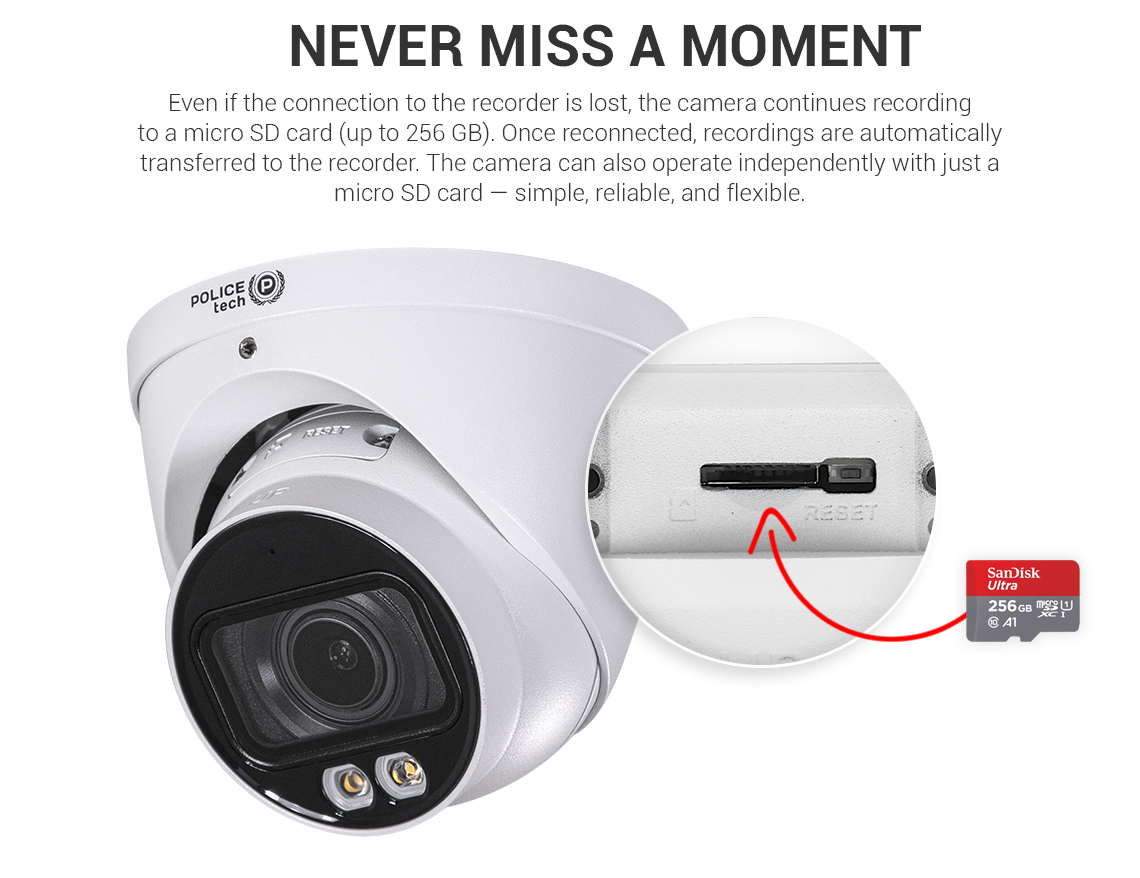

Storage: FTP; SFTP; Micro SD card (support max. 256 GB)
Browser: IE, Chrome, Firefox

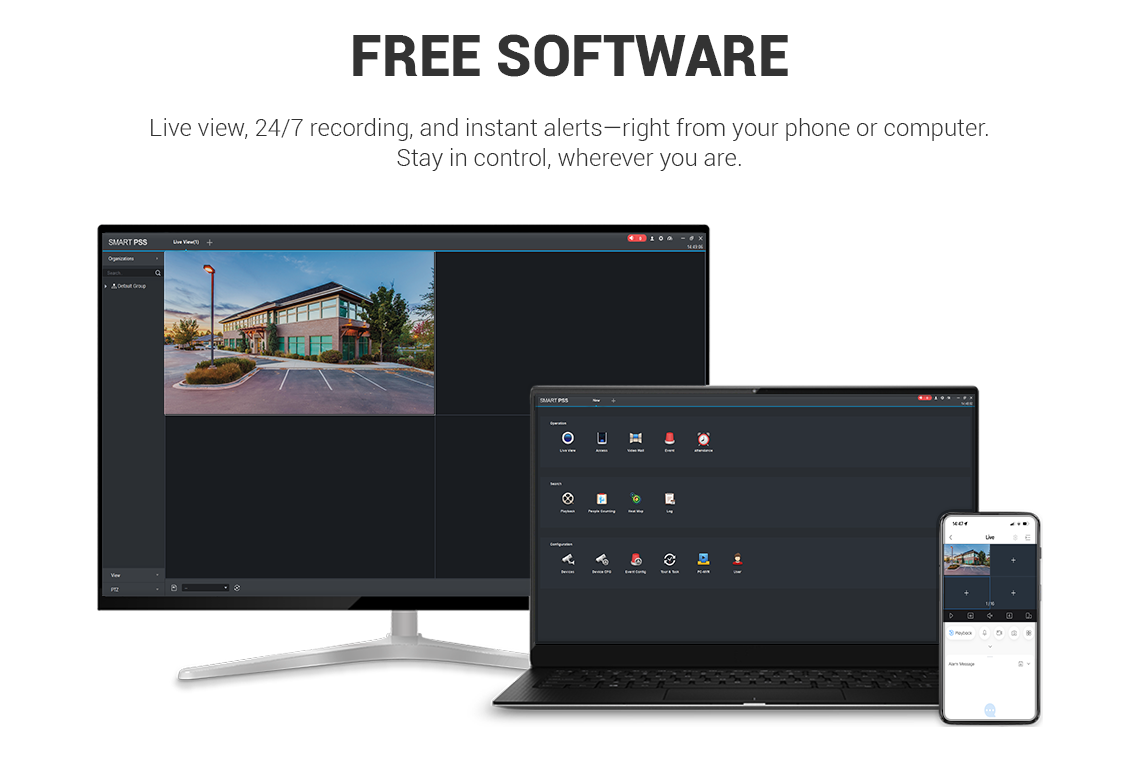

Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client: iOS;Android
Cyber Security: Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification
CE-LVD: EN62368-1; CE-EMC: Electromagnetic
Compatibility Directive 2014/30/EU

Power

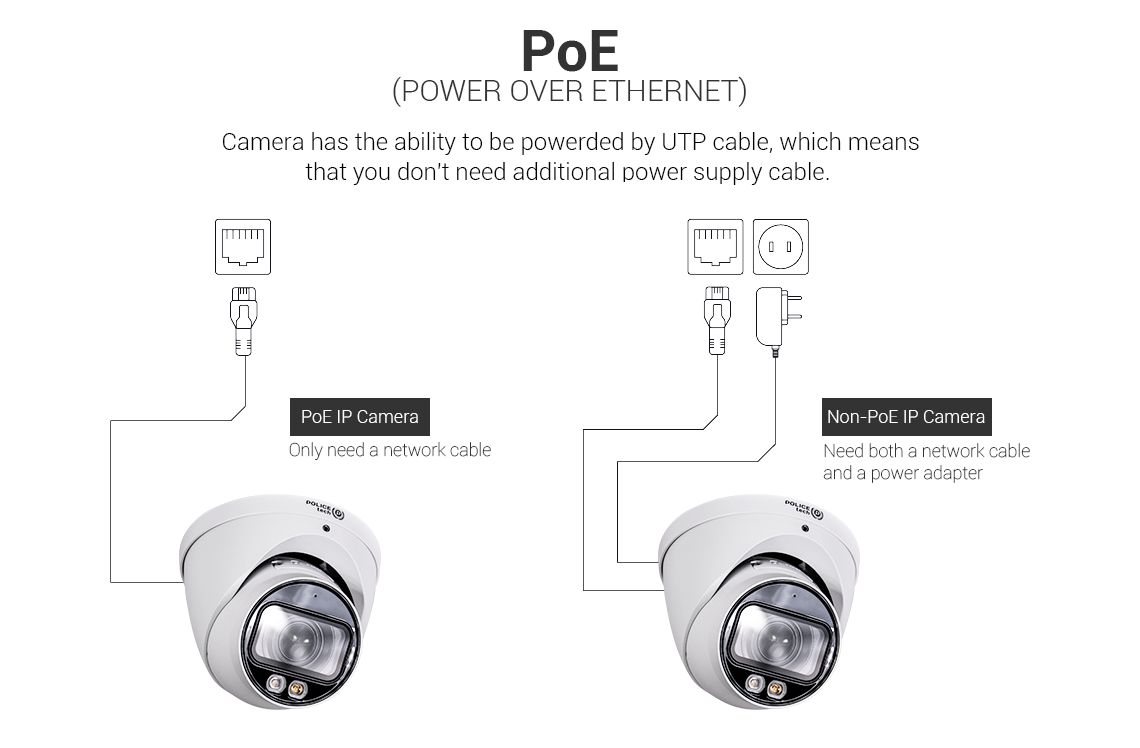

Power Supply: 12 VDC; PoE (802.3af)
Power Consumption: Basic: 2.7 W (12 VDC), 3.3 W (PoE); Max.: 8.4 W (12 VDC), 10.1 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity)

Environment
Operating Temperature:–30 °C to +60 °C
Operating Humidity: ≤95% (RH), non-condensing
Storage Temperature: –30 °C to +60 °C
Storage Humidity: ≤95% (RH), non-condensing

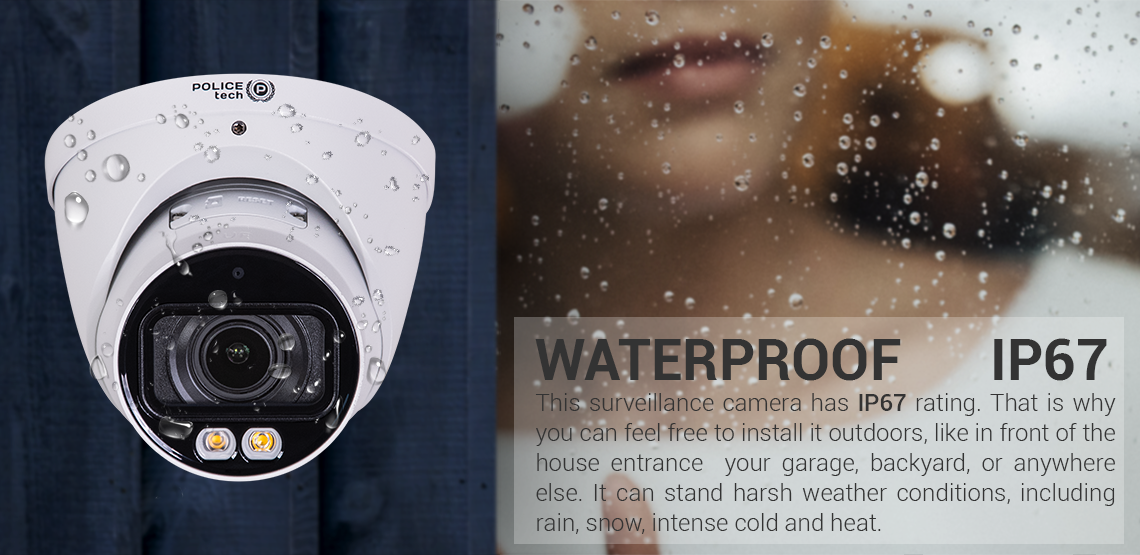

Protection: IP67

Structure
Casing Material: Metal

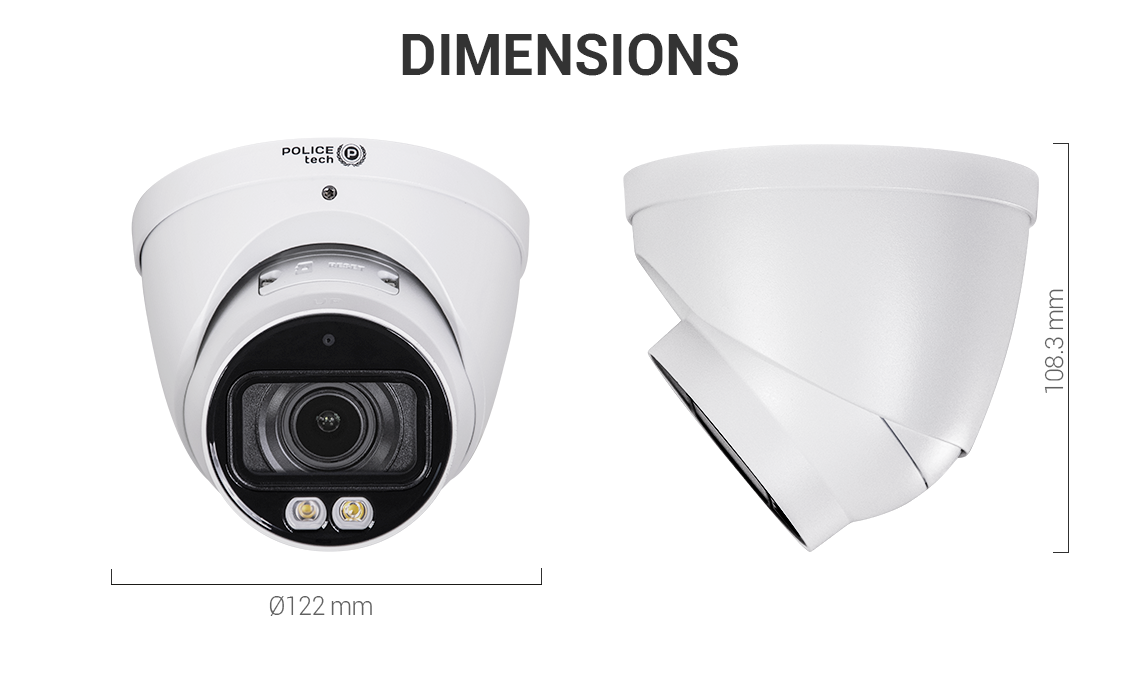

Product Dimensions: 108.3 mm × Φ122 mm
Net Weight: 0.69 kg
Gross Weight: 0.86 kg
